1000 HP FITTING PICTURES !!!!!

Brett928S2

New member
Hi All :)

Pictures of my 1000 hp system....will add explanations after I put them up...

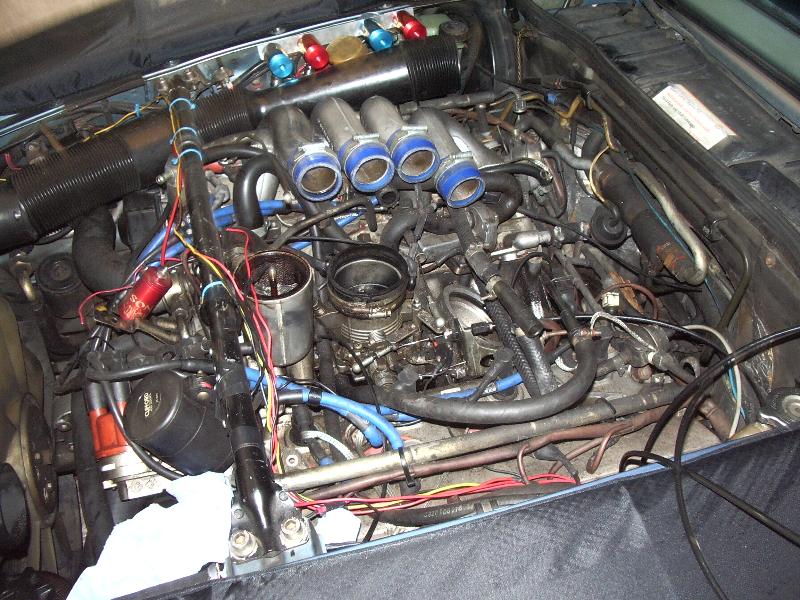

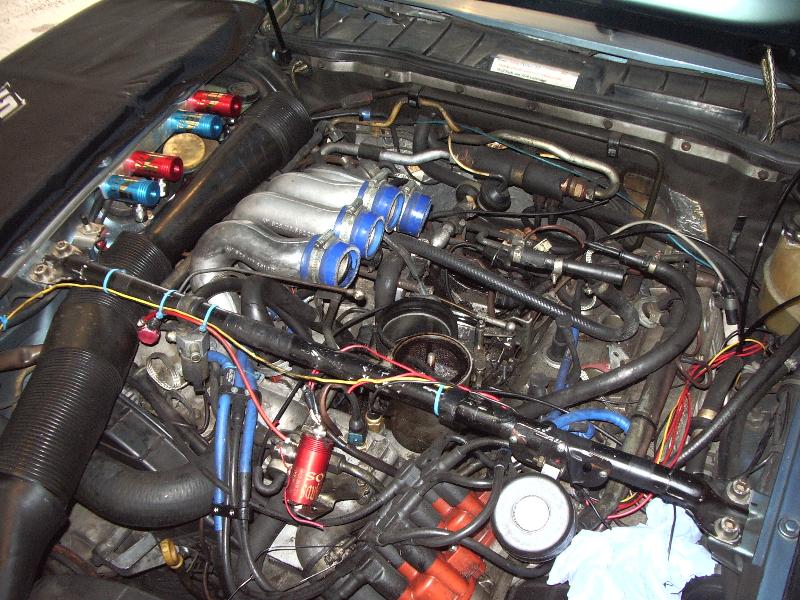

Plenum removed,maf removed etc....





pic 3

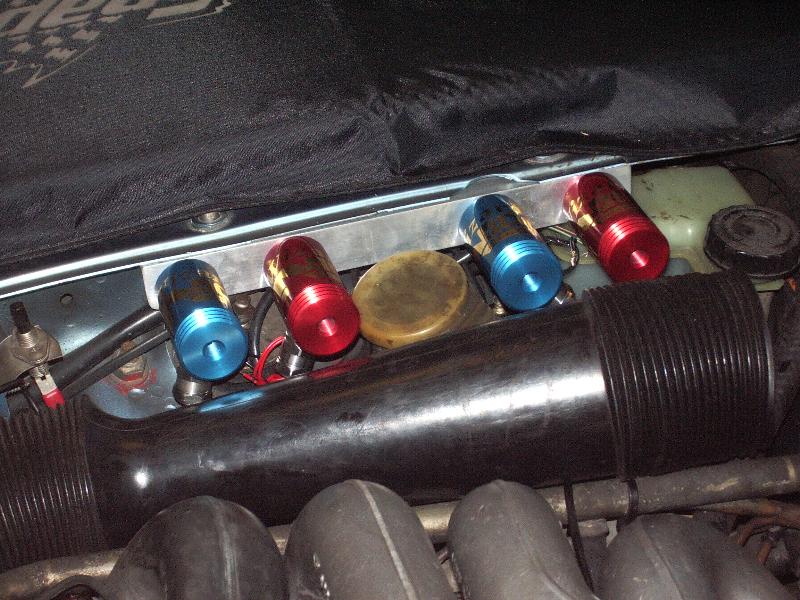

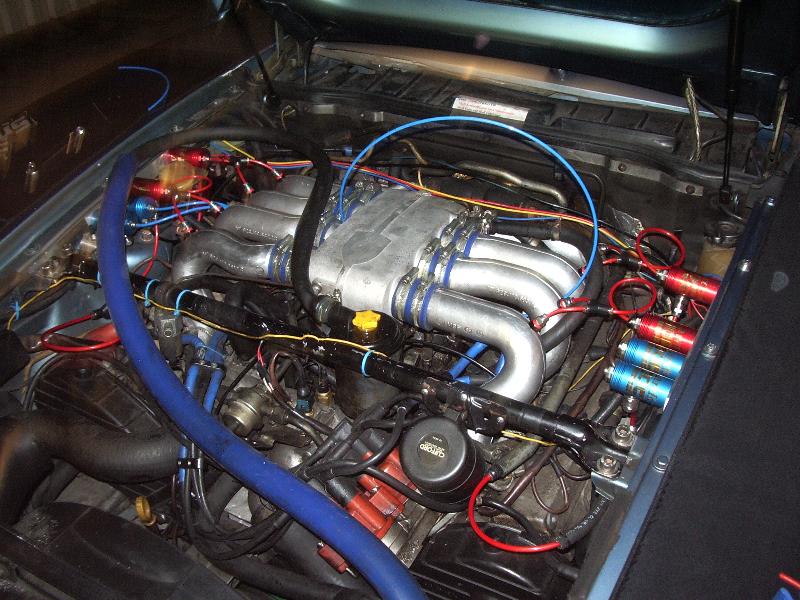

Left solenoids partially fitted...note single old solenoid still to be removed from original pair at front....8 to be fitted to replace 2...





pic 5

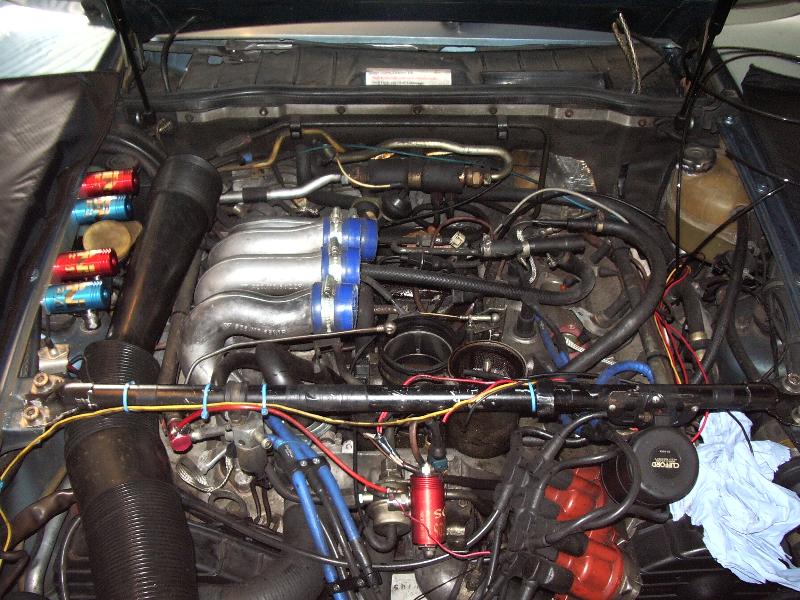

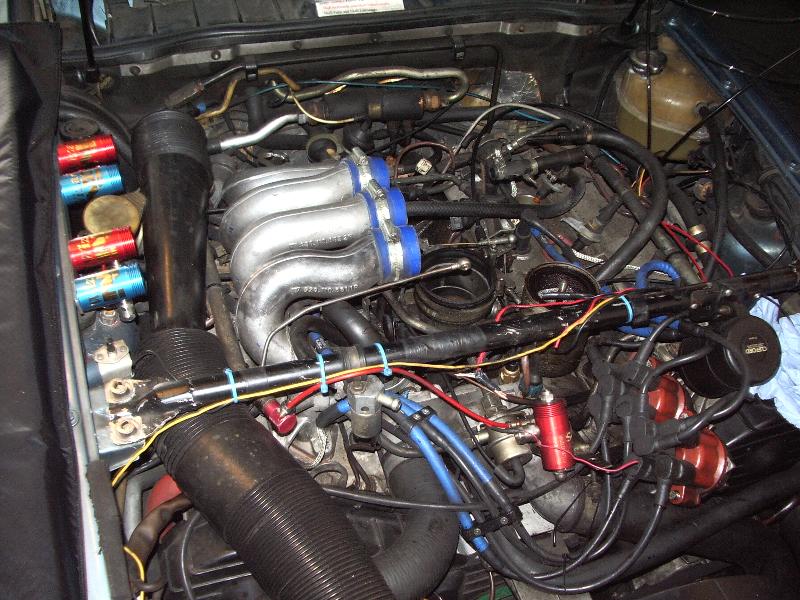

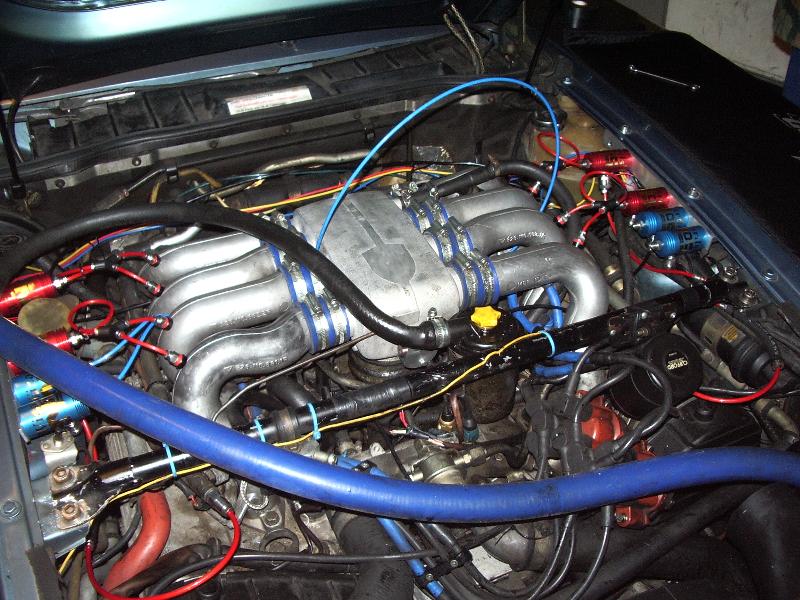

Error 1 lol...looked good but position of right end solenoid would not allow bonnet ram to close....so back to machining another ally bracket......





pic 9

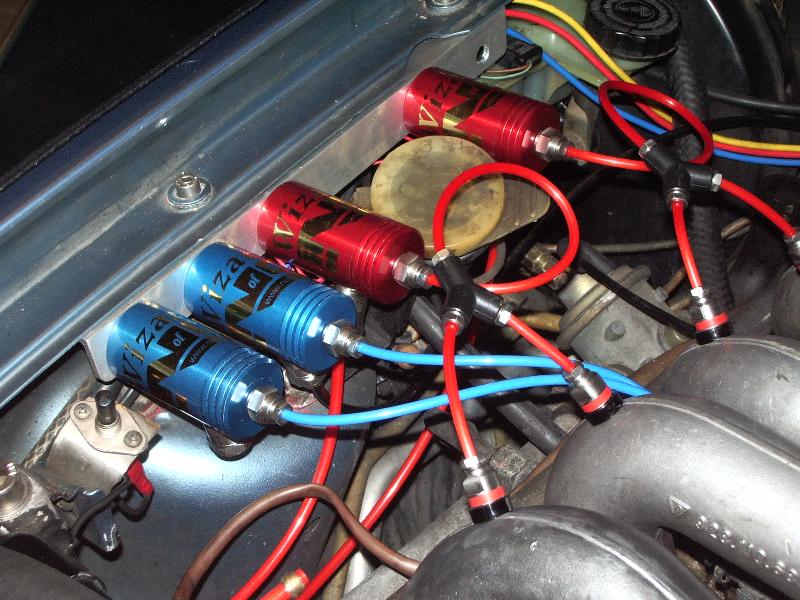

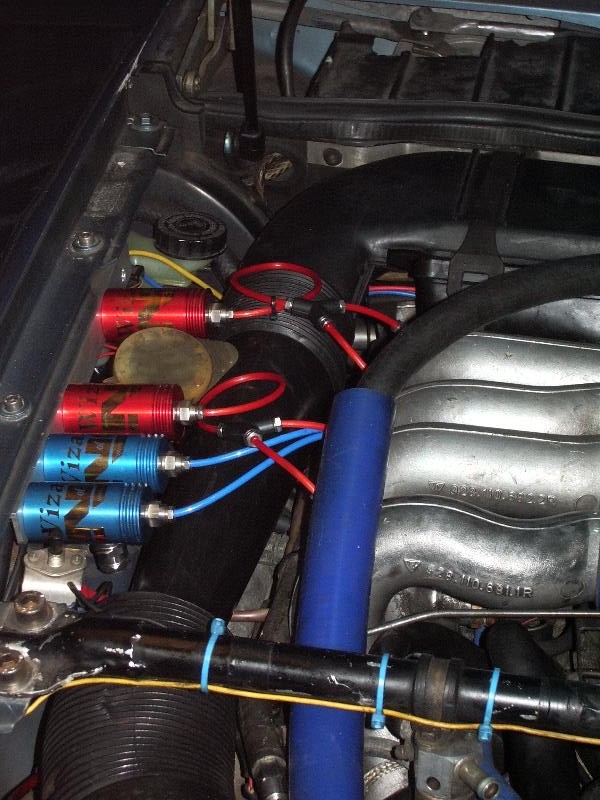

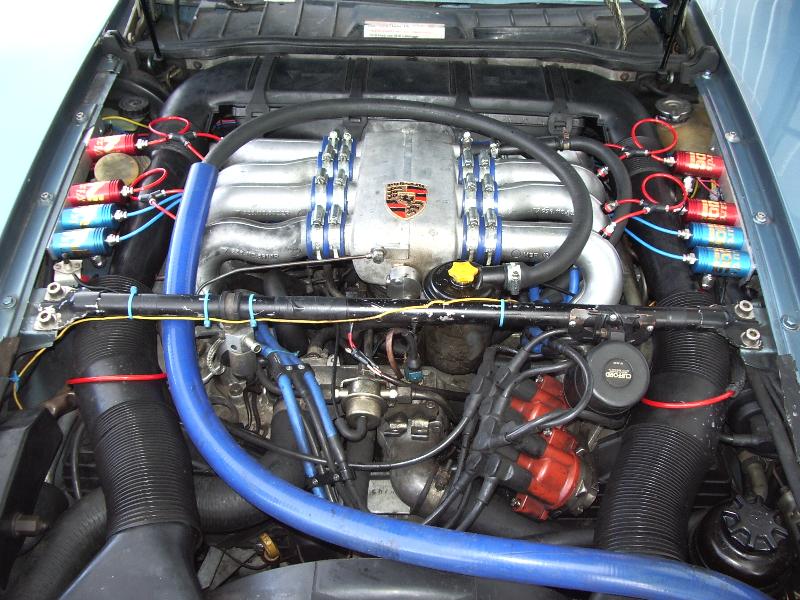

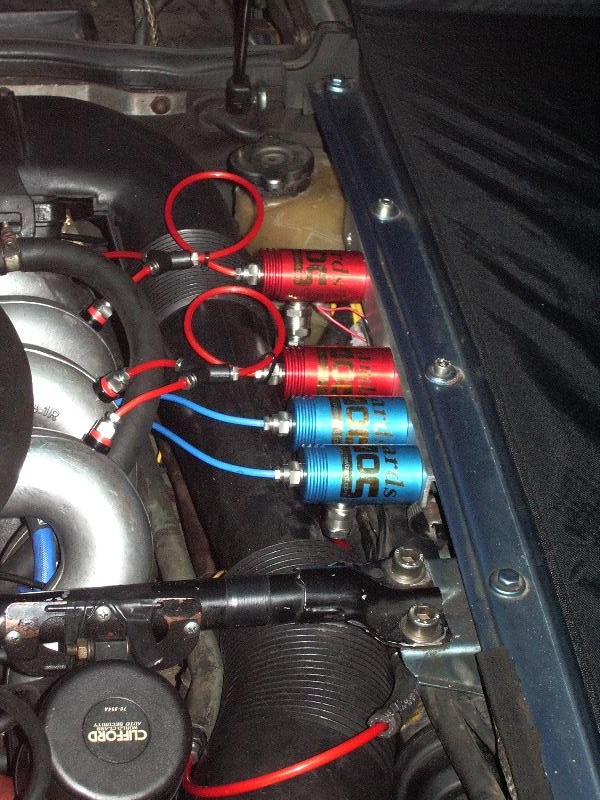

Left side finished, red = Fuel solenoids , blue = Nitrous solenoids

EACH SOLENOID IS CAPABLE OF 250 HP X 4 = 1000 HP





pic 10

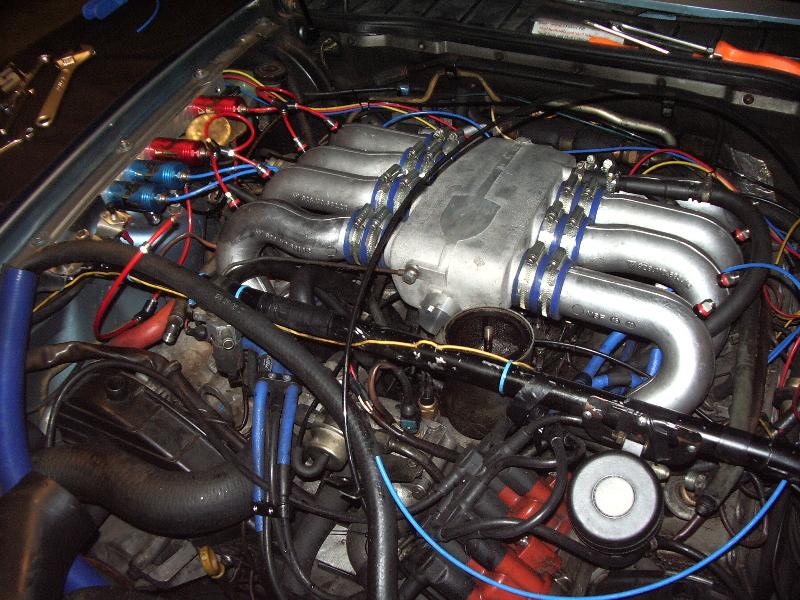

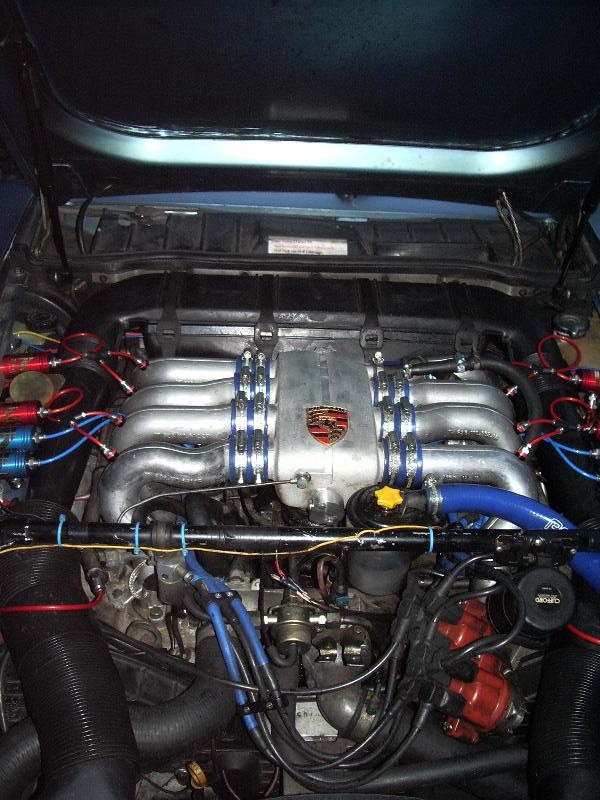

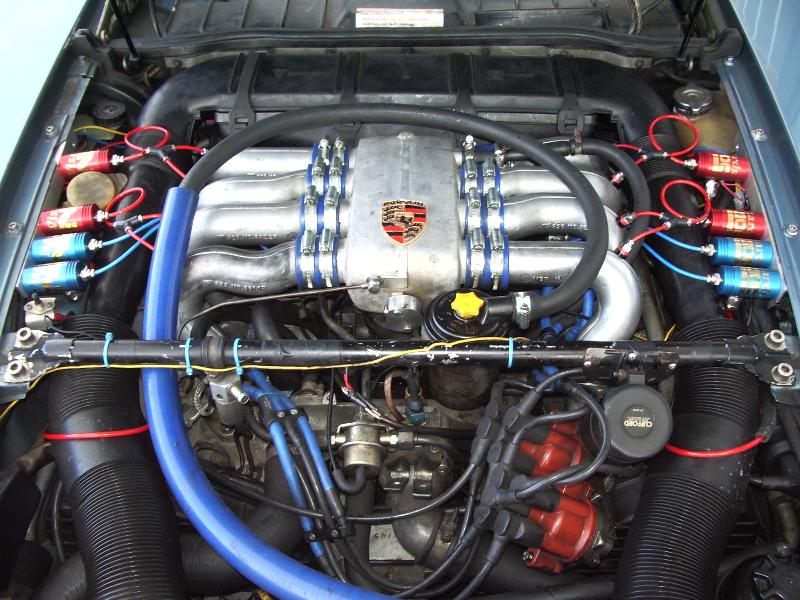

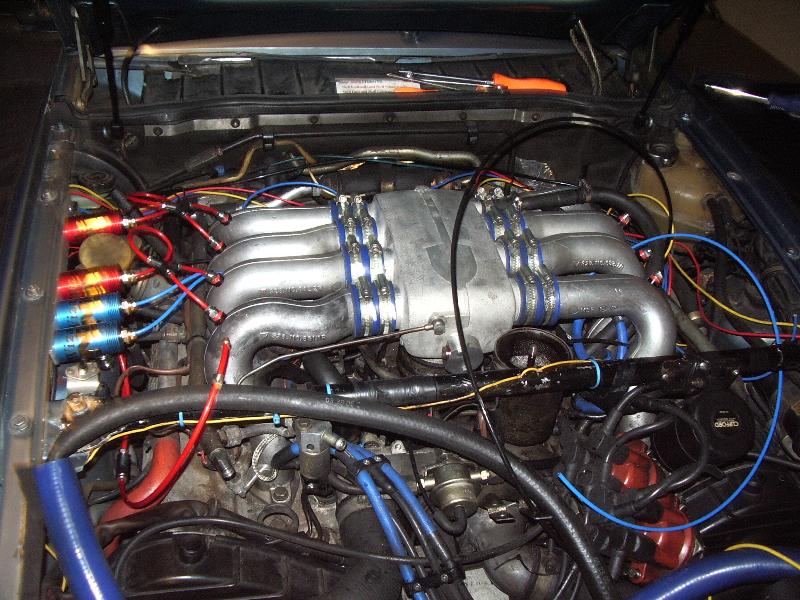

Plenum replaced and all spider legs back on and both fuel rails and injectors replaced including having tapped the right side rail to use as a fuel reservoir (same as left rail)

i.e red pipes curving round at front of each fuel rail..


pic 18

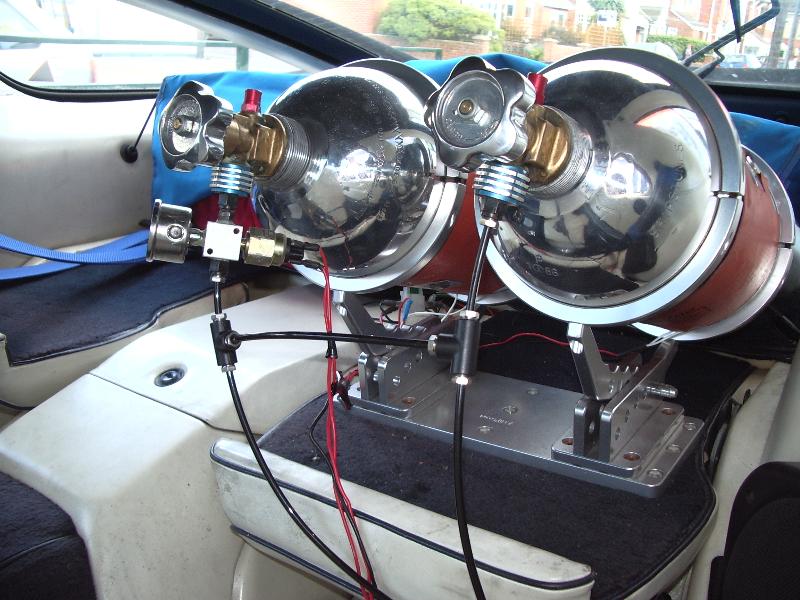

Same twin 15 lb bottles x 2 = 30 lbs of Nitrous...

Note new balance pipe between outlet pipes as with 1000 hp and each bottle feeding a different 4 cylinders (bank) they need balancing on 950 psi pressure...




Hi :)

So all done now :)

Next will be some testing and final adjustments over the next few weeks....

Watch this space :)

All the best Brett :)

Hi All :)

Did some tuning and rejetting today on my Nitrous system and finally tidied up my breather system...

Pictures from today...

1....
