3.2 climate controls

[LindyLou]

For 13 years the heater in my 3.2 has been a mystery and the owner manual is only marginally helpful due to my lack of the Geman language.

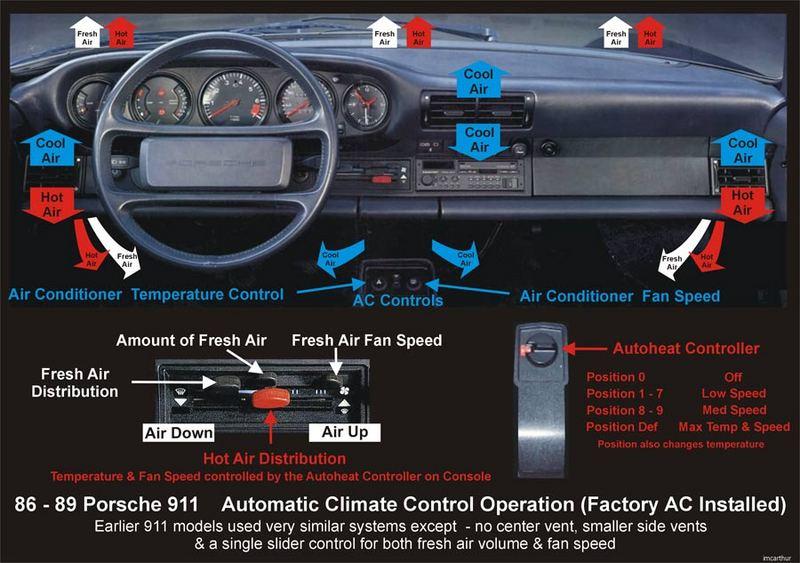

Recently found this visual explanation of the heater controls in English and thought I would share it with the group in case there are others with similar frustration.
LindyLou



[Richard_Hamilton]

Marvellous!

It took me about a year to work out that you can't get fresh air through the dash vents. I think I'm going to print this out, laminate it, and stick it on the back of the sun visor.

Thanks for sharing. Do you have the original source? It would be nice to get a larger image if it is available.



[Beaky]

ORIGINAL: Richard Hamilton

Marvellous!

It took me about a year to work out that you can't get fresh air through the dash vents. I think I'm going to print this out, laminate it, and stick it on the back of the sun visor.

Thanks for sharing. Do you have the original source? It would be nice to get a larger image if it is available.

Ditto



[LindyLou]

Richard,
Sadly, no larger size.



[Beaky]

ORIGINAL: LindyLou

Richard,
Sadly, no larger size.

yeap heard that one before.............[8D]



[Nick Paul]

Thanks for the info

By the way there are many ways you can resize the pic
1/ Using Adobe photo shop
2/ print it out using standard MS printing software to various standard sizes
3/ or simply insert the pic into MS Word and drag the corner of the pic to the size you want

Hope this helps



[Richard_Hamilton]

I wasn't really looking for a larger image, but a higher resolution one. The trouble with jpeg compression is that it makes the reds rather fuzzy in low res. It would have been nice to sharpen up the red text.

No complaints though - it is a really useful picture, and is now laminated and tucked in the glove box!
