Live supply under bonnet

[xenon]

I'm going to fit a bi-xenon HID kit to my 944 tomorrow (assuming I get it []) and fathoming out the instructions it suggests that the feed to the relays is connected (via fuse) to the battery - all very well aside from the fact that the battery is in the boot.

Anyone know where I can pick up a permanent +12v feed under the bonnet? Probably about 25A?



[rcsalmons]

Taking it of the starter motor would be your safest bet.

Rich



[xenon]

I don't understand Rich. The starter, as well as being inaccessible from the top of the car, would only have +12v supplied to it whilst cranking the engine, not all the time? Or is it a switched earth?



[sawood12]

There must be a main +12v cable running into the engine bay directly into the fuse box. You could tap into it in before the cable runs into the fuse box.



[chrisdenton]

Link to an old thread that may help. There is a useful schematic about half way down.

http://www.porscheclubgbforum.com/tm.asp?m=163371&mpage=1&key=headlight%2Cupgrade&#163371



[rcsalmons]

I see your point but in my mind is more accessible than getting to a feed at the fusebox or access to the back of the alternator - cant think where else you might get 25A. Yes it is a case of getting under the car, there is a supply direct to the solenoid (on top of the starter) which is permanently live. All you would need is a 13mm spanner, then connect your cable with crimped connector obviously having an in-line fuse 10mins max.

Rich



[Lancerlot]

ORIGINAL: xenon

I'm going to fit a bi-xenon HID kit to my 944 tomorrow (assuming I get it []) and fathoming out the instructions it suggests that the feed to the relays is connected (via fuse) to the battery - all very well aside from the fact that the battery is in the boot.

Anyone know where I can pick up a permanent +12v feed under the bonnet? Probably about 25A?

I would tend to pick up an ignition circuit rather than a permanently live one so as to avoid any possibility of a battery drain when parked up.
Regards,
Clive



[rcsalmons]

ORIGINAL: Lancerlot

ORIGINAL: xenon

I'm going to fit a bi-xenon HID kit to my 944 tomorrow (assuming I get it []) and fathoming out the instructions it suggests that the feed to the relays is connected (via fuse) to the battery - all very well aside from the fact that the battery is in the boot.

Anyone know where I can pick up a permanent +12v feed under the bonnet? Probably about 25A?

I would tend to pick up an ignition circuit rather than a permanently live one so as to avoid any possibility of a battery drain when parked up.
Regards,
Clive

There wont be any drain as the lights are switched via relays - controlled from ignition/lighting circuit. The problem is where to find a switched 25A.

Rich



[xenon]

All sorted. If you lift the fuse box out there are two main feeds (under fuses 1 & 2) direct from the battery. Picked up from there via an in-line fuse.



[Lemon]

Hi Xenon

If you have any pics and details of fitting the HID kit would love to hear from your experience as I would like to fit these but was initially put off by the thought of having to get a feed to the battery.

What connection did you use to connect to the fuse box with a fuse?

Thanks

Lee



[xenon]

Hi Lee

I simply used a normal spade connector under the fuse box, there's plenty of room. The hardest part was finding room for, and mounting, the ballasts.

I can't work out how to add pictures on this forum, so see here for some pictures:

http://forum.bmwcarmagazine.com/viewtopic.php?t=58058&start=0&postdays=0&postorder=asc&highlight=



[Lemon]

Thanks Xenon.

May look into this now later on in the year.



[Diver944]

ORIGINAL: xenon

I can't work out how to add pictures on this forum,

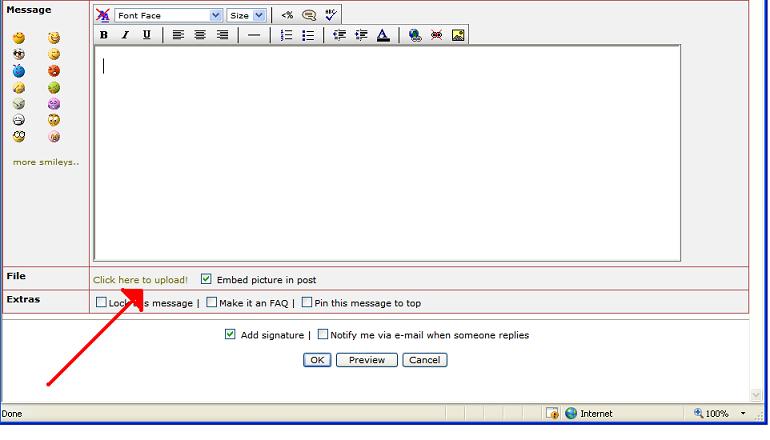

Make sure you don't use 'Fast Reply' for your post then simply put a tick in the 'embed picture in post' box and then enter the location of your pic by clicking the 'click here to upload' link



[xenon]

only lets you add one picture.
