Technical diagram

[lali]

Does anyone know where I can get a copy of a technical diagram of the outside of a 944, preferably with measurements or a scale.?



[mik_ok]

One of the tests in the Ultimate 944 Portfolio (this jobbie HERE has one.

I shall bring it in tomorrow and scan said object. Can email you a pdf if you like.

(It's from a test of an early lux vs excel and I was astounded to see the excel roofline is almost 10" lower than the 944 (!) )



[lali]

That would be great, I've sent you my work email address



[hotblack944]

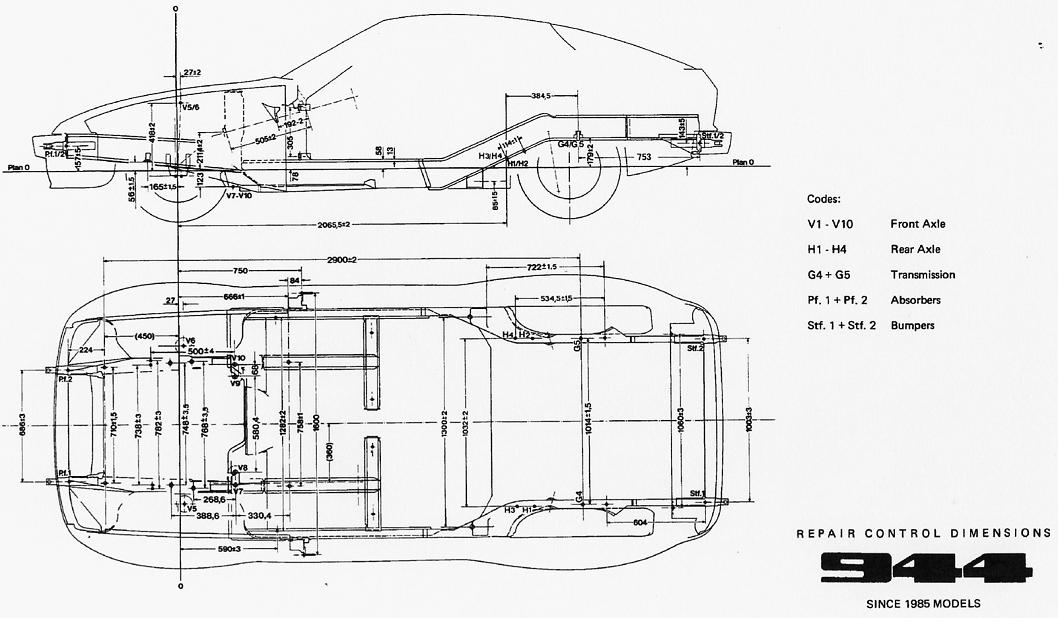

Any use?



[hotblack944]

944 / 944 S
944 Turbo

Length
168.90 in. / 4290 mm
168.90 in. / 4290 mm

Width
68.31 in. / 1735 mm
68.31 in. / 1735 mm

Height
50.20 in. / 1275 mm
50.20 in. / 1275 mm

Wheel base
94.49 in. / 2400 mm
94.49 in. / 2400 mm

Wheel track, front
58.15 in. / 1477 mm
58.15 in. / 1477 mm

Wheel track, rear
57.13 in. / 1451 mm
57.13 in. / 1451 mm

Ground clearance*
4.72 in. / 120 mm
4.72 in. / 120 mm

Tuning circle (curb to curb)
31.17 ft. / 9.5 m
31.17 ft. / 9.5 m

Tuning circle (wall to wall)
33.80 ft./ 10.3 m
33.80 ft. / 10.3 m

Overhang angle, front*
14°
12,5°

Overhang angle, rear*
15°
15°



[mik_ok]

Lali - you have mail
